plumBOSS Test Plug Double Seal 9 inch (225mm) | 9DS

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

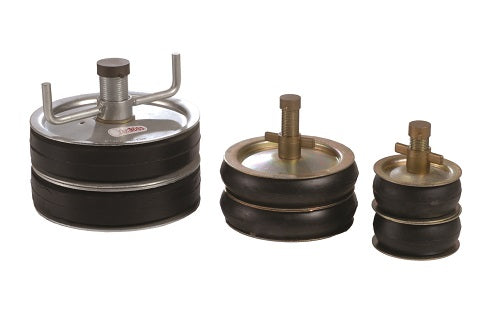

DOUBLE SEAL TEST PLUGS - Test Plug Double Seal 9" (225mm)

For uneven wall surfaces, ensures squarer seal. 4in - 15in

PRODUCT CODE	DESCRIPTION	MIN/MAX - (mm)	BSP OUTLET SIZE
4DS	TEST PLUG DOUBLE SEAL 4in (100mm)	94 - 110	½in
6DS	TEST PLUG DOUBLE SEAL 6in (150mm)	146 - 163	½in
8DS	TEST PLUG DOUBLE SEAL 8in (200mm)	191 - 211	1in
9DS	TEST PLUG DOUBLE SEAL 9in (225mm)	216 - 235	1in
10DS	TEST PLUG DOUBLE SEAL 10in (250mm)	244 - 260	1in
12DS	TEST PLUG DOUBLE SEAL 12in (300mm)	296 - 314	1in
15DS	TEST PLUG DOUBLE SEAL 15in (375mm)	365 - 400	1in

Operating Pressure Sizes
This is a guide to the maximum back pressure for the different types and sizes of test plugs. These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.
½” (12.5mm) to (30mm)	30 psi
1½” (40mm) to (300mm)	7 psi
13” (325mm) to (1200mm)	5 psi
Over 40” (1200mm)	3 psi

Product form

STOCK CODE: 9DS

or call us on:
P: 1300 331 141

Find a Retailer

1000+ Distributors Australia wide! Call us on 1300 331 141 to find your nearest retailer.

Description

DOUBLE SEAL TEST PLUGS - Test Plug Double Seal 9" (225mm)

For uneven wall surfaces, ensures squarer seal. 4in - 15in

PRODUCT CODE	DESCRIPTION	MIN/MAX - (mm)	BSP OUTLET SIZE
4DS	TEST PLUG DOUBLE SEAL 4in (100mm)	94 - 110	½in
6DS	TEST PLUG DOUBLE SEAL 6in (150mm)	146 - 163	½in
8DS	TEST PLUG DOUBLE SEAL 8in (200mm)	191 - 211	1in
9DS	TEST PLUG DOUBLE SEAL 9in (225mm)	216 - 235	1in
10DS	TEST PLUG DOUBLE SEAL 10in (250mm)	244 - 260	1in
12DS	TEST PLUG DOUBLE SEAL 12in (300mm)	296 - 314	1in
15DS	TEST PLUG DOUBLE SEAL 15in (375mm)	365 - 400	1in

Operating Pressure Sizes
This is a guide to the maximum back pressure for the different types and sizes of test plugs. These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.
½” (12.5mm) to (30mm)	30 psi
1½” (40mm) to (300mm)	7 psi
13” (325mm) to (1200mm)	5 psi
Over 40” (1200mm)	3 psi
