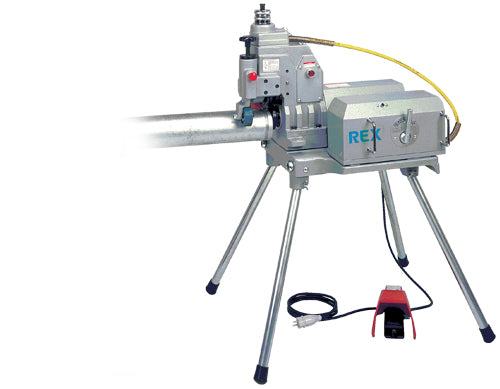

PORTABLE HYDRAULIC ROLL GROOVING ATTACHMENT Comes standard with 2 - 6 inch rollers (sch10 - sch40) Grooves 1in to 16in Schedule 10 steel and 1in to 12in Schedule 40 steel pipes Compact, light weight, powerful, and large capacity! Easy to mount on your REX or RIDGID threading machine. Easy operation with guide roller. No need to put your hand on the pipe Minimal operator effort required due to mechanical advantage of hydraulic system The Rollers for grooving above 6 inch are an optional extra and must be purchase seperately The mounting plates to adapt this groover to your specified power drive must be purchase seperately

Read more less

PORTABLE ROLL GROOVER M (FPG150M) NPG150M Training Grooving Attachment and Power Drive package Anti-slipping device enables safe, efficient processing Groove depth easily adjusted. Power Drive facilitates light and easy operation. When joining pipe using the Roll Grooving method no metal is removed during the roll grooving process. Instead, the pipe material at the groove is displaced inward by the roll groove forming operation. As a result, the groove is made considerably faster than cut grooving or threading. Roll Grooving also minimises the need to use messy cutting fluids and the generation of metal shavings are also eliminated. In fact, one of the roll grooving's most recognized benefits are time savings. Less time to prepare the pipe for installation translates to shorter production schedules and fewer chances for construction delays. STRENGTH OF ROLL GROOVED PIPE With regard to pipe end preparation, roll grooving does not compromise the integrity of the pipe joint. The inward radial displacement which occurs at the groove during the roll grooving process causes pipe material property changes comparable to similar cold forming manufacturing operations. Any potential increase in pipe hardness, reduction in tensile strength or reduction in elongation due to the roll grooving process has no effect on the pressure capability of the joint. The Rex roll grooving method offers a clean, fast method for grooving standard wall and light wall carbon steel, stainless steel, aluminium, PVC, copper and copper nickel tubing and pipe. This has helped roll grooving to become the standard method for pipe end preparation in grooved pipe systems, with more than 90 percent of standard wall pipe being roll grooved instead of cut grooved. The construction scheduling timesaving benefits and inherent cleanliness are complemented by excellent pressure handling performance once installed. Moreover, decades of field-proven success on millions of roll grooved pipe joints around the world fully demonstrate its integrity for use in grooved piping systems. NPG150M Demo

Read more less

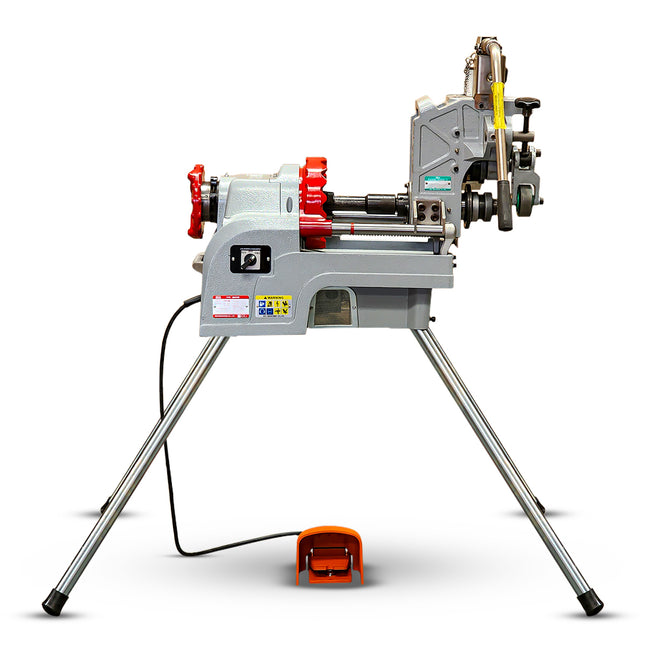

PORTABLE ROLL GROOVER H (FPG150H) Grooving Attachment and Power Drive package Anti-slipping device enables safe, efficient processing Groove depth easily adjusted. Power Drive facilitates light and easy operation. When joining pipe using the Roll Grooving method no metal is removed during the roll grooving process. Instead, the pipe material at the groove is displaced inward by the roll groove forming operation. As a result, the groove is made considerably faster than cut grooving or threading. Roll Grooving also minimises the need to use messy cutting fluids and the generation of metal shavings are also eliminated. In fact, one of the roll grooving's most recognized benefits are time savings. Less time to prepare the pipe for installation translates to shorter production schedules and fewer chances for construction delays. STRENGTH OF ROLL GROOVED PIPE With regard to pipe end preparation, roll grooving does not compromise the integrity of the pipe joint. The inward radial displacement which occurs at the groove during the roll grooving process causes pipe material property changes comparable to similar cold forming manufacturing operations. Any potential increase in pipe hardness, reduction in tensile strength or reduction in elongation due to the roll grooving process has no effect on the pressure capability of the joint. The Rex roll grooving method offers a clean, fast method for grooving standard wall and light wall carbon steel, stainless steel, aluminium, PVC, copper and copper nickel tubing and pipe. This has helped roll grooving to become the standard method for pipe end preparation in grooved pipe systems, with more than 90 percent of standard wall pipe being roll grooved instead of cut grooved. The construction scheduling timesaving benefits and inherent cleanliness are complemented by excellent pressure handling performance once installed. Moreover, decades of field-proven success on millions of roll grooved pipe joints around the world fully demonstrate its integrity for use in grooved piping systems. Comes Standard with 2-6 inch rolles (Sch 10- Sch 40) & 1 -6 inch Spacer and Power drive. Compact, lightweight, powerful and large capacity! Easy operation with guide roller - no need to put your have on the pipe Minimal operator effort required due to mechanical advantage of hydraulic system

Read more less

RG-R1 ROLL GROOVER ATTACHMENT 2 in - 6 in ATTACHES TO MOST POWER DRIVE UNITS FOR FAST, EASY GROOVING T-handle feed design minimizes operator fatigue. No separate ratchet required Anti-slipping device enables safe, efficient processing. Groove depth easily adjusted Makes groove on 1in - 6in schedule 10 and 1in - 3in schedule 40 steel pipes Power mechanism enables grooving with minimal force Compact, lightweight and excellent durability

Read more less

RGPACK2 Includes: 1 x NPG150M (Power drive, groover attachment and legs) Groove depth able to be easily and finely adjusted Groove depth can be set for repeated, consistent grooves Superior power drive - capable of grooving stainless steel The power drive can also power an attachment with 16‚¬ capacity (Sold separately, or see code NPG150H for package option) No need to put your hands on the pipe while grooving Can groove up to 900mm long lengths without pipe stands Superior safety and power Call us to select the correct grooving, or grooving and threading package to suit your needs 1 x exactCUT PEC220E Medium duty (6.0 kg) pipe cutting system Range of use 15 - 220mm Max pipe wall thickness: 8mm for steel or 14mm for plastic 1 x Pipe Stand Convenient adjusting screw A hardened steel locking ring Outer surfaces are powder painted and zinc phosphate plated to resist corrosion Working Height Range min 730mm - Max 1250mm

Read more less

RGPACK1 Includes: 1 x NPG150M (Power drive, groover attachment and legs) Groove depth able to be easily and finely adjusted Groove depth can be set for repeated, consistent grooves Superior power drive - capable of grooving stainless steel The power drive can also power an attachment with 16‚¬ capacity (Sold separately, or see code NPG150H for package option) No need to put your hands on the pipe while grooving Can groove up to 900mm long lengths without pipe stands Superior safety and power Call us to select the correct grooving, or grooving and threading package to suit your needs 1 x exactCUT PEC170E 5.7kg, most lightweight pipe cutting system Range of use 15 - 170mm Max pipe wall thickness: 8mm for steel or 14mm for plastic 1 x Pipe Stand Convenient adjusting screw A hardened steel locking ring Outer surfaces are powder painted and zinc phosphate plated to resist corrosion Working Height Range min 730mm - Max 1250mm

Read more less
