Description

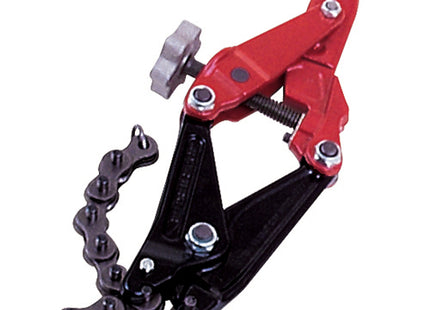

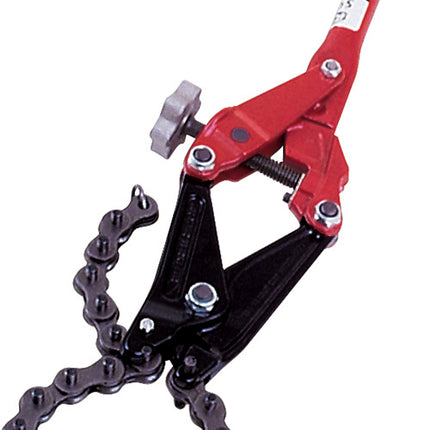

Snap Type Cutter (Manual) - Ratchet Soil Pipe Cutter 2"- 8" (50-212mm)
The captured screw makes the SC49 close-quarter soil pipe cutters both easy to use and less costly. The screw does not have to be manipulated into place which reduces screw and cutter breakage.
The fastest way to cut cast iron soil pipe, clay pipe, and small diameter concrete pipe is with a chain soil pipe cutter. Great for gray water applications! Improved design with stronger jaws and more durable adjusting screws. The ratcheting SC49 model is ideal for close quarter work. Multiple use 1/2in ratchet wrench ships with SC49 models. No-Hub Roller Kit is standard on all models. Not suitable for cutting ductile iron for which a hinge cutter or rotary cutter is recommended.
Maximum Pipe Capacities
(determined by maximum pressure applied):
- Extra heavy cast iron soil pipe 2-4in (62-125 mm)
- Service weight cast iron soil pipe 2-8in (62-212 mm)
- Concrete pipe 4-6in (125-160 mm)
- No-Hub cast iron soil pipe 1 1/2in-8in (38-212 mm)
- Clay pipe 2-12in (62-317 mm)
Extension chains available to increase capacity of smaller cutters.
| Code |
Pipe Capacity |
Length |
Weight |
| Inches - Nom |
Actual Ø mm |
Inches |
mm |
lbs |
kg |
| SC49-6 |
1 1/2 - 6 |
160 |
26 |
660 |
17.6 |
8.0 |
| SC49-8 |
1 1/2 - 8 |
212 |
26 |
660 |
19.4 |
8.8 |
| SC49-10 |
1 1/2 - 10 |
268 |
26 |
660 |
21.2 |
9.6 |
| SC49-12 |
1 1/2 - 12 |
317 |
26 |
660 |
23.0 |
10.5 |
|
