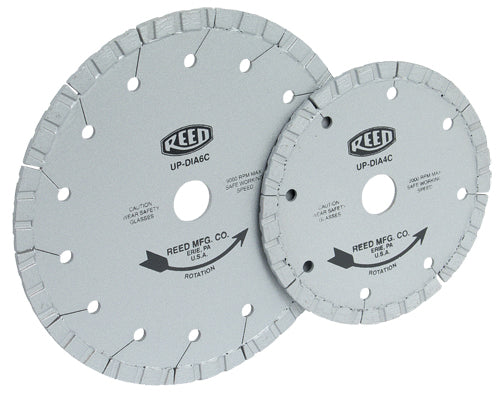

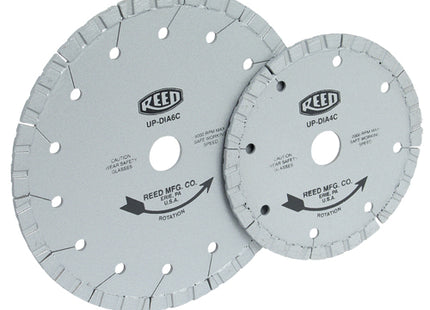

UPC Blade 6-8 inch Clay/CI - UPCDIA4 | RD97529

Description

Description

Blades available for pneumatic Universal Reed Pipe Cutters. Blades for STEEL PIPE give operators a great new use for the UPC NOTE When cutting steel pipe with the steel blades or "DIA" blades, sparks are possible and expected. Because of the sparks, the UPC cannot be used for cold cuts.

97511 PVC pipe bevel cutter for the UPC produces a 15 degree bevel on the pipe.

CAUTION When cutting steel, ductile iron, or cast iron, the UPC can produce sparks. When cutting PE, the UPC may cause a build-up of static electricity. Do not use the UPC saw in-line on potentially explosive or otherwise dangerous situations. The line must be verified as completely purged of any flammable vapor or liquid.

Catalog No. Item
Code		 Description Pipe Diameter Pipe Material
PB-UPCARB4 97510 4" BLADES cut up to
23/32" (18.3 mm)
wall thickness		 6" (150 mm) Pipe PVC
PB-UPCARB6 97514 6" BLADES cut up to
1 23/32" (43.7 mm)
wall thickness		 8"- 48"
(200-1300mm) Pipe		 PVC
PB-UPSTEEL4 97519 Carbide-tipped 4"
BLADES cut up to
1/2" (12.7 mm)
STEEL wall thickness

Carbide-tipped 4"
BLADES cut up to
23/32" (18.3 mm)
PE wall thickness		 6" - 8" (150-200 mm) Pipe Steel




PE
PB-UPSTEEL6 97520 Carbide-tipped 6"
BLADES cut up to
1/2" (12.7 mm)
STEEL wall thickness

Carbide-tipped 6"
BLADES cut up to
1 23/32" (43.7 mm)
PE wall thickness		 8" - 48"
(200-1300mm) Pipe		 Steel




PE
PB-UPCPE8 [1] 97521 8" BLADES cut up to
2 23/32" (69 mm)
wall thickness.		 26" - 48"
(660-1300mm) Pipe		 PE
PB-UPDIA6C 97524 6" BLADES cut up to
1 23/32" (43.7 mm)
wall thickness		 8"- 48"
(200-1300mm) Pipe		 Cast Iron, Pit Cast,
Ductile Iron, Clay,
Concrete
PB-UPDIA4C 97528 4" BLADES cut up to
23/32" (18.3 mm)
wall thickness		 6" (150 mm) Pipe Cast Iron, Pit Cast,
Ductile Iron, Clay,
Concrete
[1] This blade works only with the UPC836 and UPC848 models.
