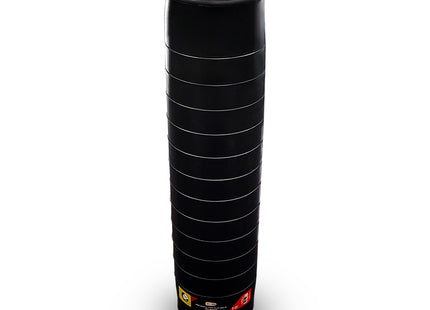

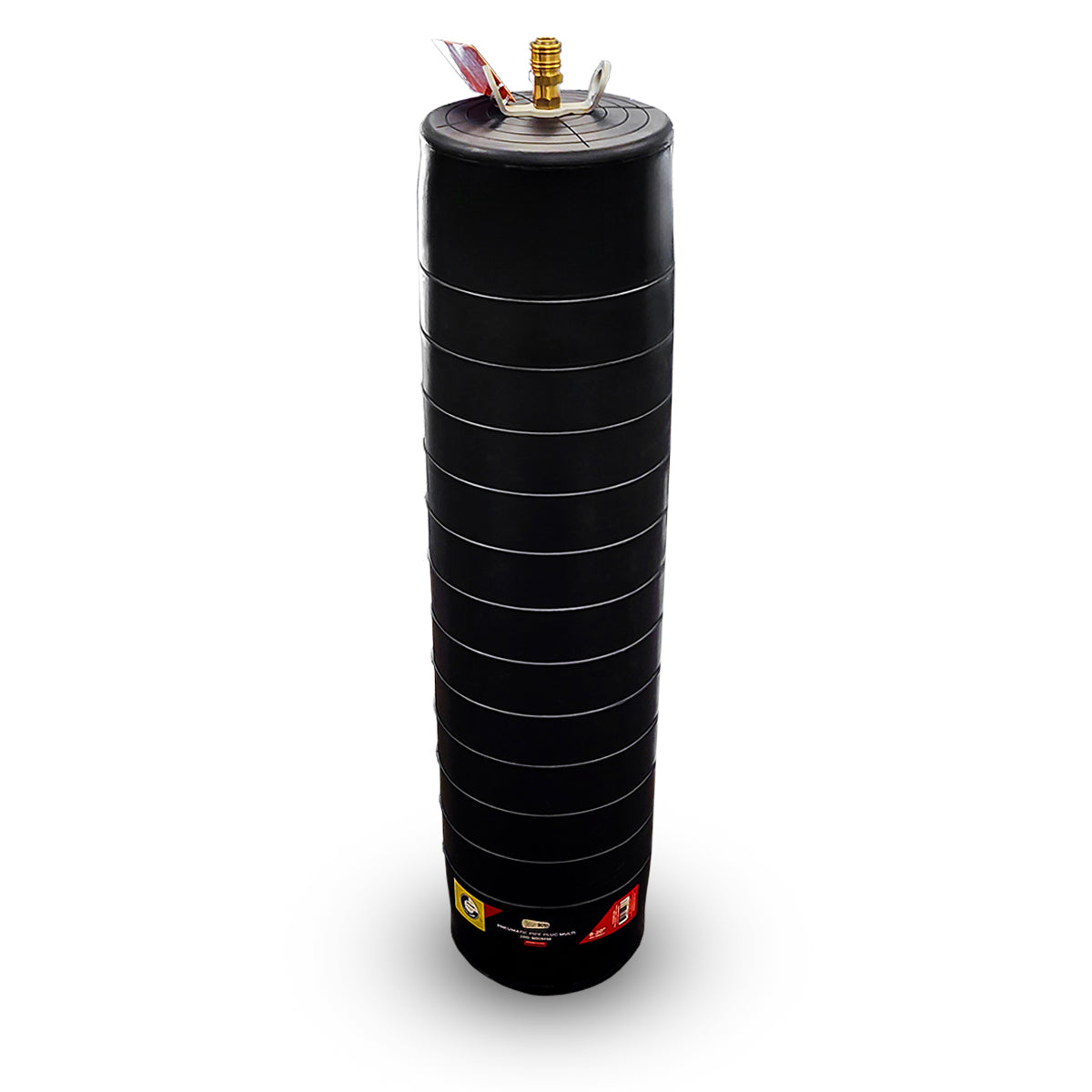

Pneumatic Pipe Plug Multi Size 200-500mm | PPPM200-500

Description

MULTI SIZE TEST BALL

The pneumatic test plug is the most versatile pipe plug available. Because of their flexible sealing design, the same plug can cover a wide range of pipe sizes and overcome common problems such as out of round pipe. These plugs are available with a flowthrough or bypass for testing or simply as a blocking plug.

NR SBR

All our pneumatic pipe plugs are manufactured from a high quality blend of natural rubber and styrene-butadiene rubber. NR-SBR has excellent mechanical properties making it particularly appreciated in environments subject to heavy wear due to friction, or where it is constantly exposed to impact or direct contact with abrasive elements. As a result, it is commonly used in the mining industry and in industrial environments subject to high abrasion where materials guaranteeing a long working life and optimum efficiency are required.

Benefits & Advantages

  • Excellent mechanical properties.
  • Low compression set and high resilience.
  • Excellent dynamic and rebound properties.
  • Temperature range: -40ºC to +80ºC.
  • SBR sheeting is more resistant to ageing and temperature than Natural Rubber, with good performance up to 110ºC
  • Resistance to chemicals; good resistance to acids, alkalis and salts. Its contact with oils and hydrocarbons is not advisable.
PART NUMBER
 SIZE USAGE RANGE
MAXIMUM
INFLATION
PRESSURE
[bar] / [psi]
 DEFLATED PLUG
PRODUCT
WEIGHT
[kg]
MIN. DIA.
[mm]		 MAX. DIA.
[mm]		 DIAMETER
[mm]		 RUBBER
LENGTH
[mm]		 OVERALL
LENGTH
[mm]
PPPM070-150 70 150 2.5 / 36 63 320 370 0.59
PPPM150-300 150 300 2.5 / 36 133 500 550 1.76
PPPM200-500 200 500 2.5 / 36 180 750 800 4.30
PPPM300-600 300 600 2.5 / 36 280 800 850 7.00



Multi Size Back Pressure [BAR] / [PSI]

SIZE
 PIPE DIAMETER [mm] / [inch]
70 /
2.8		 100 /
4		 150 /
6		 200 /
8		 300 /
12		 400 /
16		 500 /
20		 600 /
24
70-150 2.0 / 29 1.5 / 22 1 / 14.5
150-300 2.0 / 29 1.5 / 22 1 / 14.5
200-500 2.0 / 29 1.6 / 23.2 1.3 / 19 1 / 14.5
300-600 2.0 / 29 1.6 / 23.2 1.4 / 20.3 1 / 14.5

For more sizes call us on: 1300 331 141

Product form

STOCK CODE: PPPM200-500

or call us on:
P: 1300 331 141

Icon for shopping_bagFind a Retailer

1000+ Distributors Australia wide! Call us on 1300 331 141 to find your nearest retailer.

Downloads:


Download Pneumatic Pipe Plug Multi Size 200-500mm | PPPM200-500 Parts Specs

Description

MULTI SIZE TEST BALL

The pneumatic test plug is the most versatile pipe plug available. Because of their flexible sealing design, the same plug can cover a wide range of pipe sizes and overcome common problems such as out of round pipe. These plugs are available with a flowthrough or bypass for testing or simply as a blocking plug.

NR SBR

All our pneumatic pipe plugs are manufactured from a high quality blend of natural rubber and styrene-butadiene rubber. NR-SBR has excellent mechanical properties making it particularly appreciated in environments subject to heavy wear due to friction, or where it is constantly exposed to impact or direct contact with abrasive elements. As a result, it is commonly used in the mining industry and in industrial environments subject to high abrasion where materials guaranteeing a long working life and optimum efficiency are required.

Benefits & Advantages

  • Excellent mechanical properties.
  • Low compression set and high resilience.
  • Excellent dynamic and rebound properties.
  • Temperature range: -40ºC to +80ºC.
  • SBR sheeting is more resistant to ageing and temperature than Natural Rubber, with good performance up to 110ºC
  • Resistance to chemicals; good resistance to acids, alkalis and salts. Its contact with oils and hydrocarbons is not advisable.
PART NUMBER
 SIZE USAGE RANGE
MAXIMUM
INFLATION
PRESSURE
[bar] / [psi]
 DEFLATED PLUG
PRODUCT
WEIGHT
[kg]
MIN. DIA.
[mm]		 MAX. DIA.
[mm]		 DIAMETER
[mm]		 RUBBER
LENGTH
[mm]		 OVERALL
LENGTH
[mm]
PPPM070-150 70 150 2.5 / 36 63 320 370 0.59
PPPM150-300 150 300 2.5 / 36 133 500 550 1.76
PPPM200-500 200 500 2.5 / 36 180 750 800 4.30
PPPM300-600 300 600 2.5 / 36 280 800 850 7.00



Multi Size Back Pressure [BAR] / [PSI]

SIZE
 PIPE DIAMETER [mm] / [inch]
70 /
2.8		 100 /
4		 150 /
6		 200 /
8		 300 /
12		 400 /
16		 500 /
20		 600 /
24
70-150 2.0 / 29 1.5 / 22 1 / 14.5
150-300 2.0 / 29 1.5 / 22 1 / 14.5
200-500 2.0 / 29 1.6 / 23.2 1.3 / 19 1 / 14.5
300-600 2.0 / 29 1.6 / 23.2 1.4 / 20.3 1 / 14.5

For more sizes call us on: 1300 331 141
