Categories: exactCUT Pipe Cutters, exactCUT Pipe Saws - Straight Cut Various Materials, Pipe and Tube Cutting, Steel Pipe,

plumBOSS exactCUT 360 AIR PipeCut 110-360 mm | PEC360AIR

Product form

STOCK CODE: PEC360AIR

or call us on:
P: 1300 331 141


Icon for shopping_bagFind a Retailer

1000+ Distributors Australia wide! Call us on 1300 331 141 to find your nearest retailer.

Key Features
  • Fast cutting portable Air Saw (>1min for iron pipe with 10" O/D)
  • Cutting cost very low due to the cost per cut

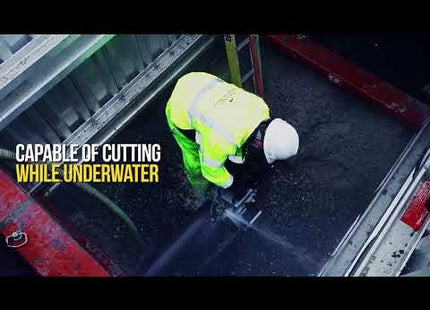

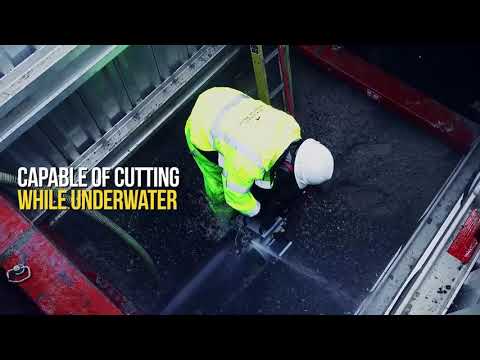

  • Capable of cutting whilst submerged in water
  • Motor protection, the motor does not start if there is a lack of oil.
Downloads:
Download plumBOSS exactCUT 360 AIR PipeCut 110-360 mm | PEC360AIR User Manual
Download plumBOSS exactCUT 360 AIR PipeCut 110-360 mm | PEC360AIR Adjustment Wheel Guide

Description

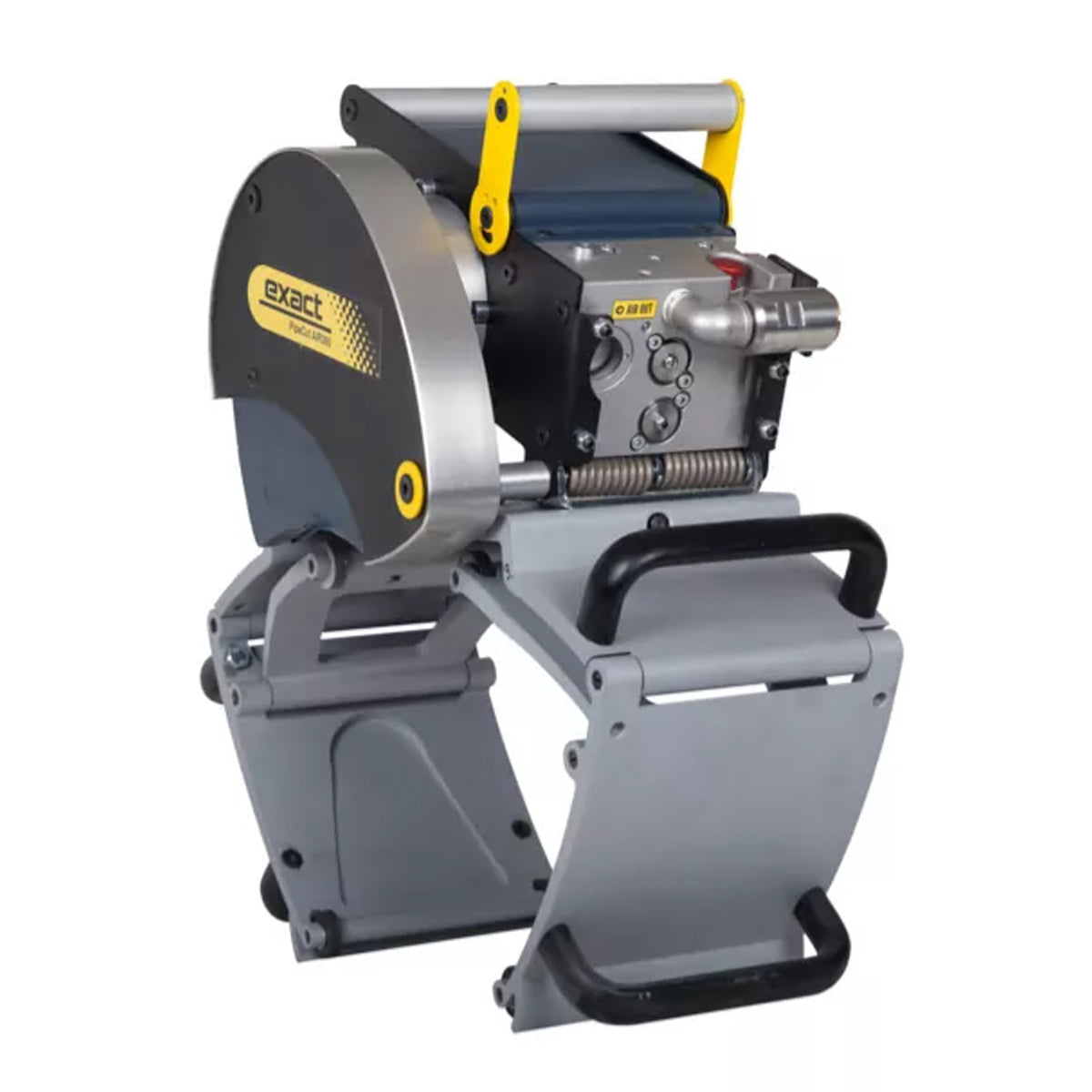

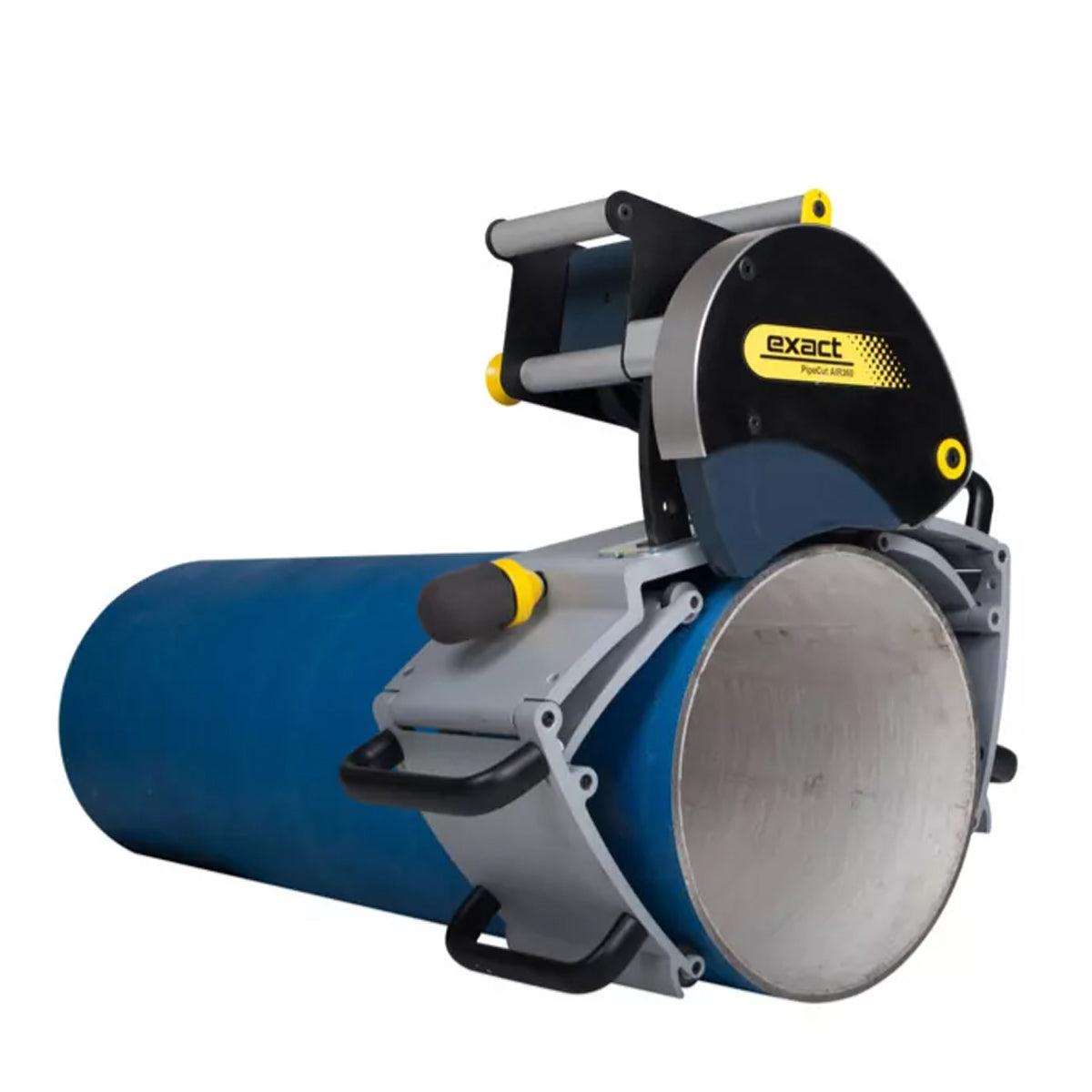

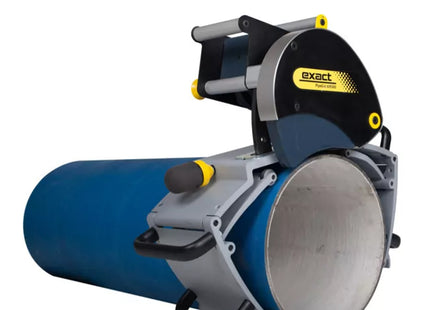

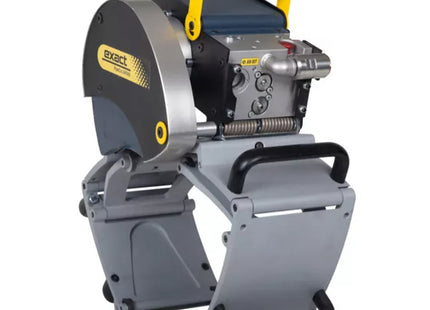

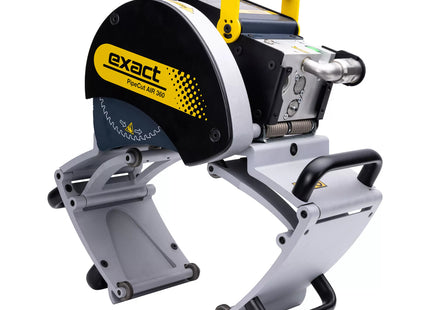

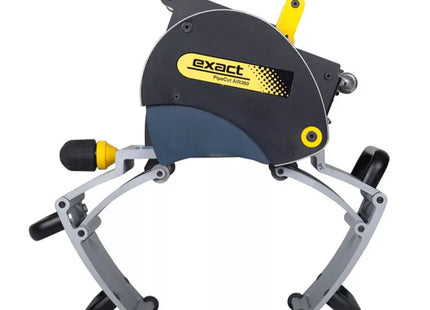

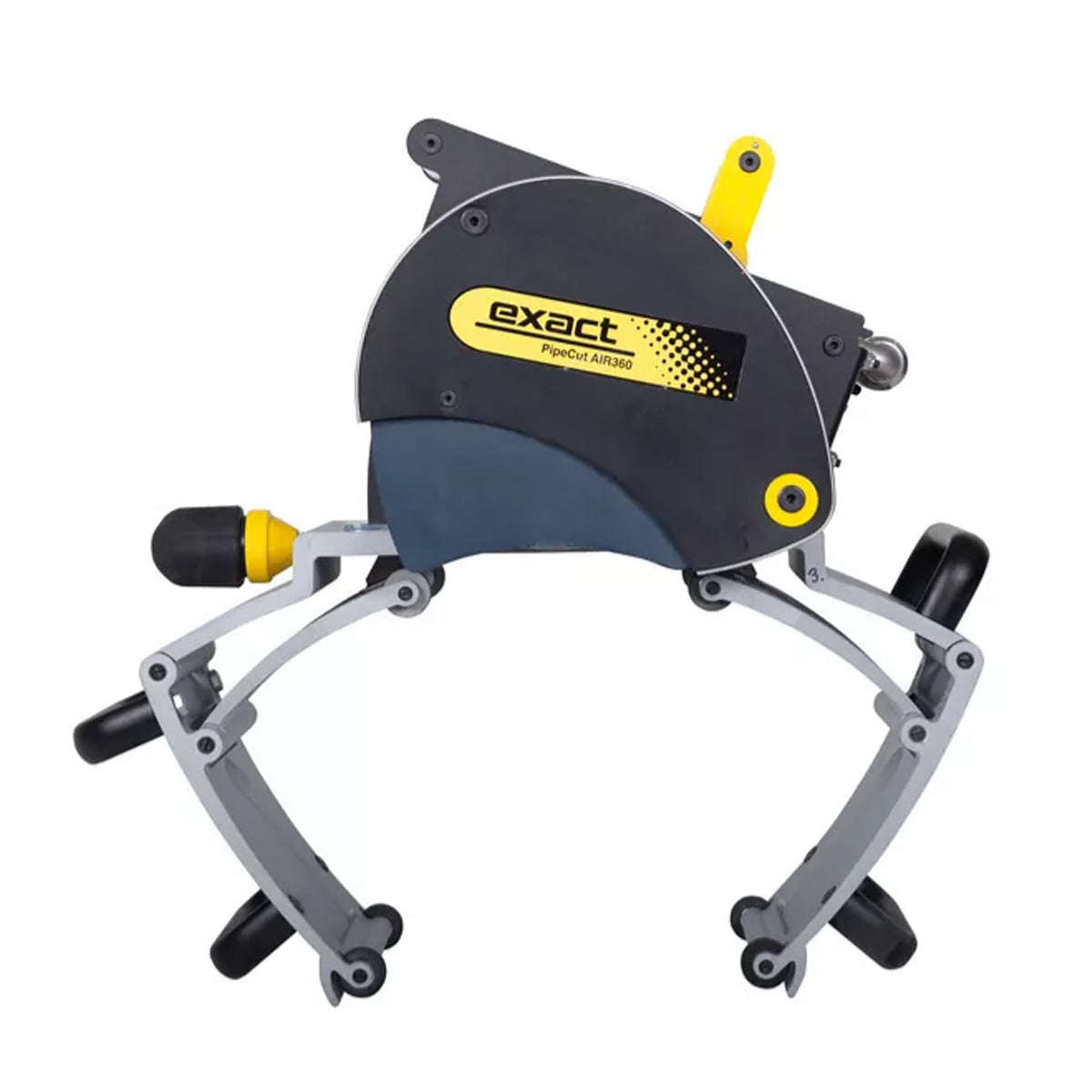

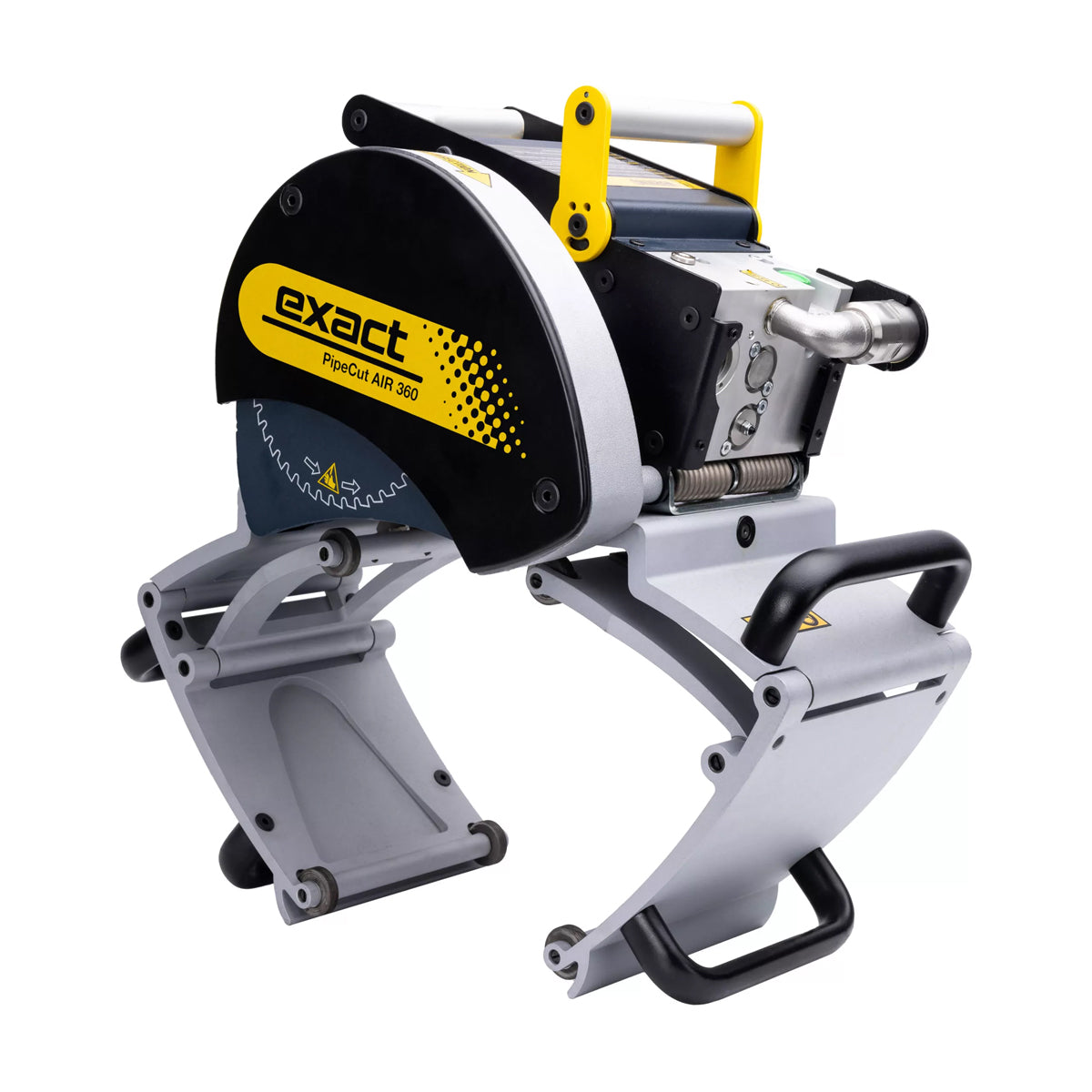

plumBOSS exactCUT pneumatic AIR360 Cutting Machine

A completely pneumatic pipe saw. It is designed mainly to cut assembled pipes in a trench/ditch, and can also be used on the pipe supports like any other exactCUT pipe saw.

The AIR360 pneumatic pipe cutting machine has been designed for cutting cement lined cast iron and ductile pipe material for repair and maintenance applications.

This is an air driven saw that can be used to cut pipe in a fixed position in the trench, pipes with water under pressure inside, and can be used alongside all other Exact pipe saws with Exact pipe holders.

The AIR360 offers users the opportunity to cut plastic and steel pipe material. Please note: steel pipe cutting may shorten the lifetime of the saw blade before it becomes blunt and will need to be sharpened or replaced.

Pipe materials
Suitable for all pipe materials such as steel, plastics (any type), stainless steel, can be cut using an Exact Saw blade:

  • Diamond X 180 and X 165 Discs, only for cast iron or ductile
  • Exact ALU 180 and 165, for all plastic types pipe, aluminum pipes
  • Exact Cermet 180 and 165, for steel and stainless steel pipes
AIR360 FEATURES
  • Extremely safe to use
  • Easy to learn, easy to operate
  • Life time of the 360 Air Saw is very long ROI in a very short period of time
  • Fast cutting portable Air Saw in the World taking less than 1 minute to cut cast iron pipe material with 10" O/D
  • Several cuts can be achieved before topping up the oiler system
  • Motor protection, the motor does not start if there is a lack of oil.
  • Portable
  • High end professional quality pneumatical pipe saw for fast and safe pipe cutting
  • Minimum needed space around the pipe is at least: 8 inch (200 mm)

Specifications

  • Weight: 26.7kg
  • Cutting Range: 100mm (4 inch) - 350mm (14 inch)
  • Max Pipe Wall: 45mm (1.8 inch) - Steel & Plastic
  • Power: 4.6 HP / 3.4 Kw
  • Required Air Pressure: 6 bar / 90 psi
  • Free Air Flow: 4m3 / min / 140 CFM*
  • Operating Temp: 40C to -20 C
  • Cutting Depths: Max Pipe Wall Thickness
  • 6inch: 33.7mm (1.35 inch)
  • Read more
* if the pressure and free air flow are less than recommended, power and speed reduces accordingly.
