Description

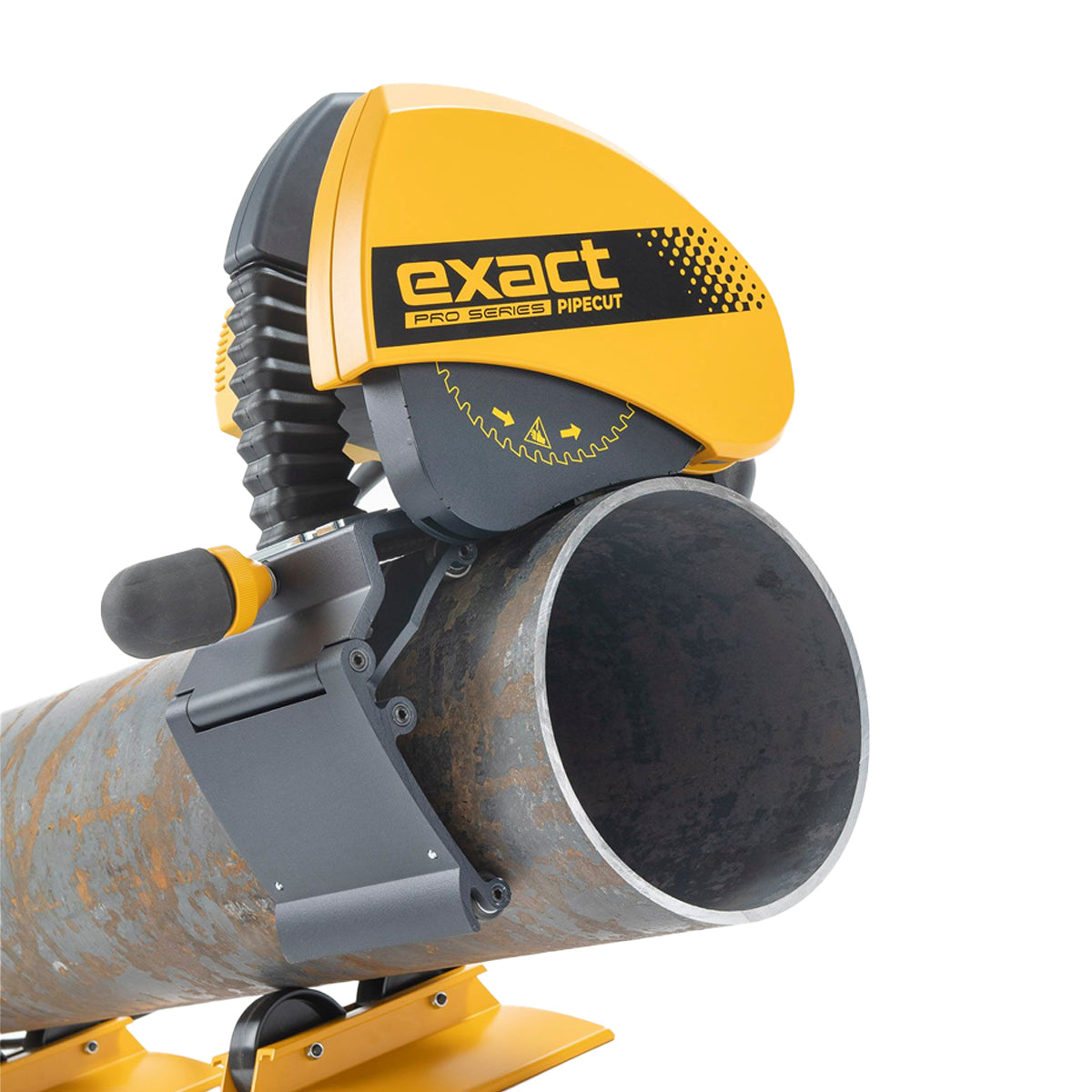

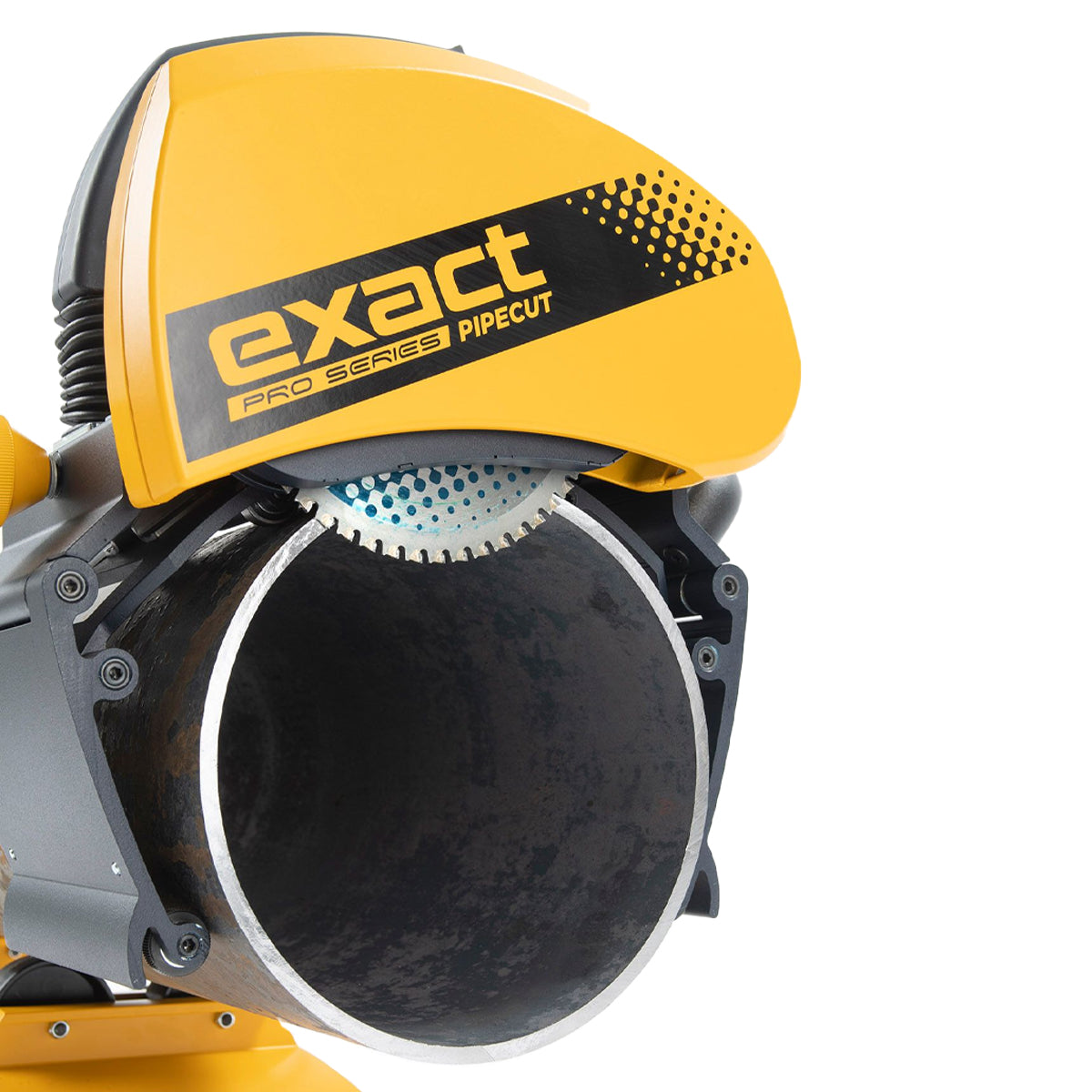

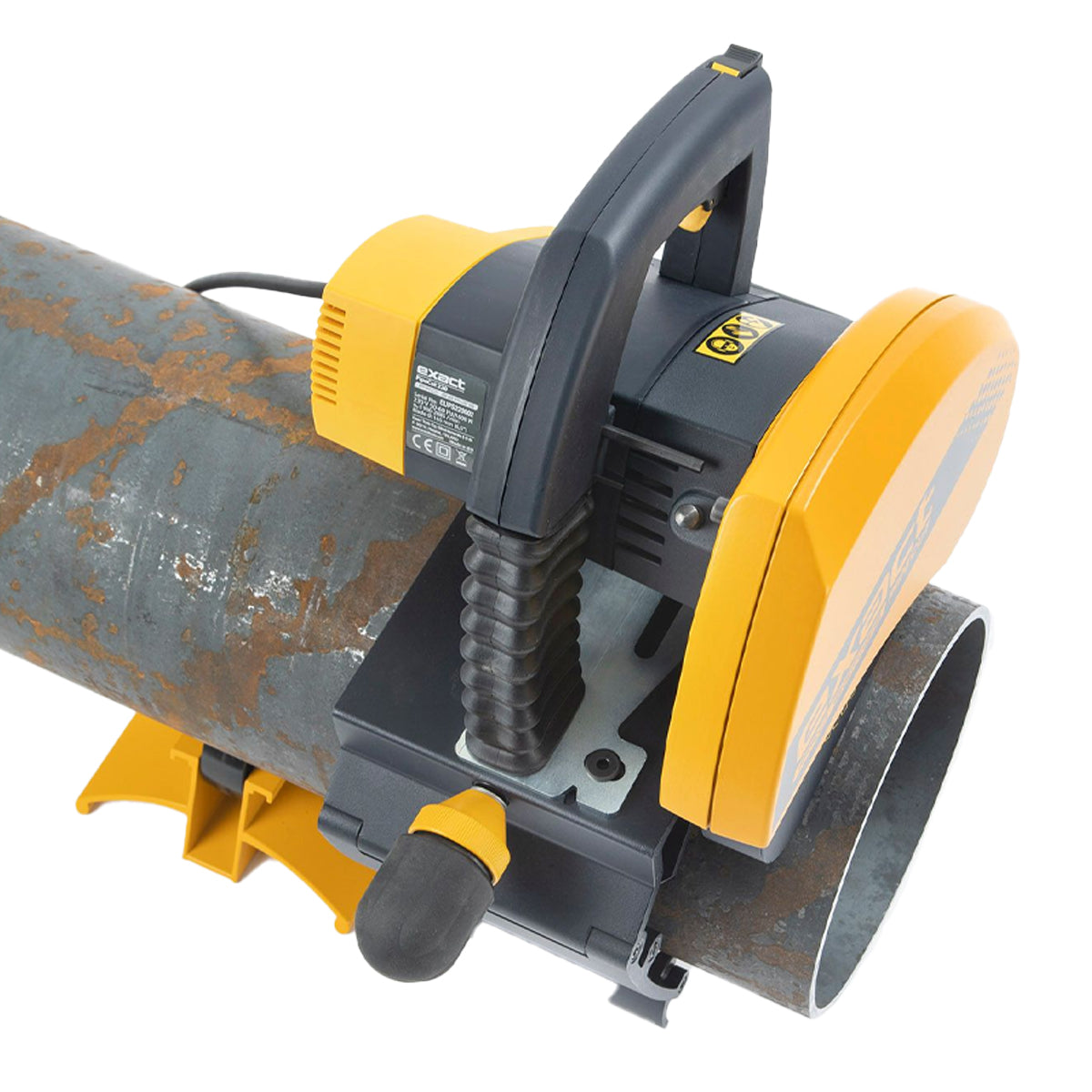

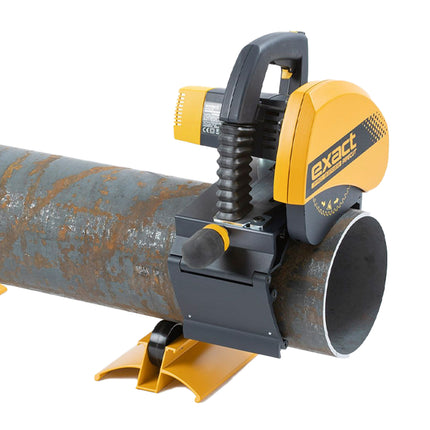

Heavy-duty pipe saw for small and medium diameter pipes

This machine is the choice for you, when you need to cut any small to medium sized pipes of toughest and thickest pipe materials you face.

Thanks to this pipe saw’s advanced features, you can cut steel pipes with wall thickness up to 16 mm (0.62″).

The max. wall thickness cutting capacity for plastic pipes is 35 mm (1.37″).

The cutting capacity for pipe outside diameter is 20 mm – 220 mm (0.8″ – 8.7″).

This new machine is equipped with all the powerful features of our advanced Pro Series machines:

• User friendliness, extremely easy and convenient to use
• Efficiency, extremely fast cuts

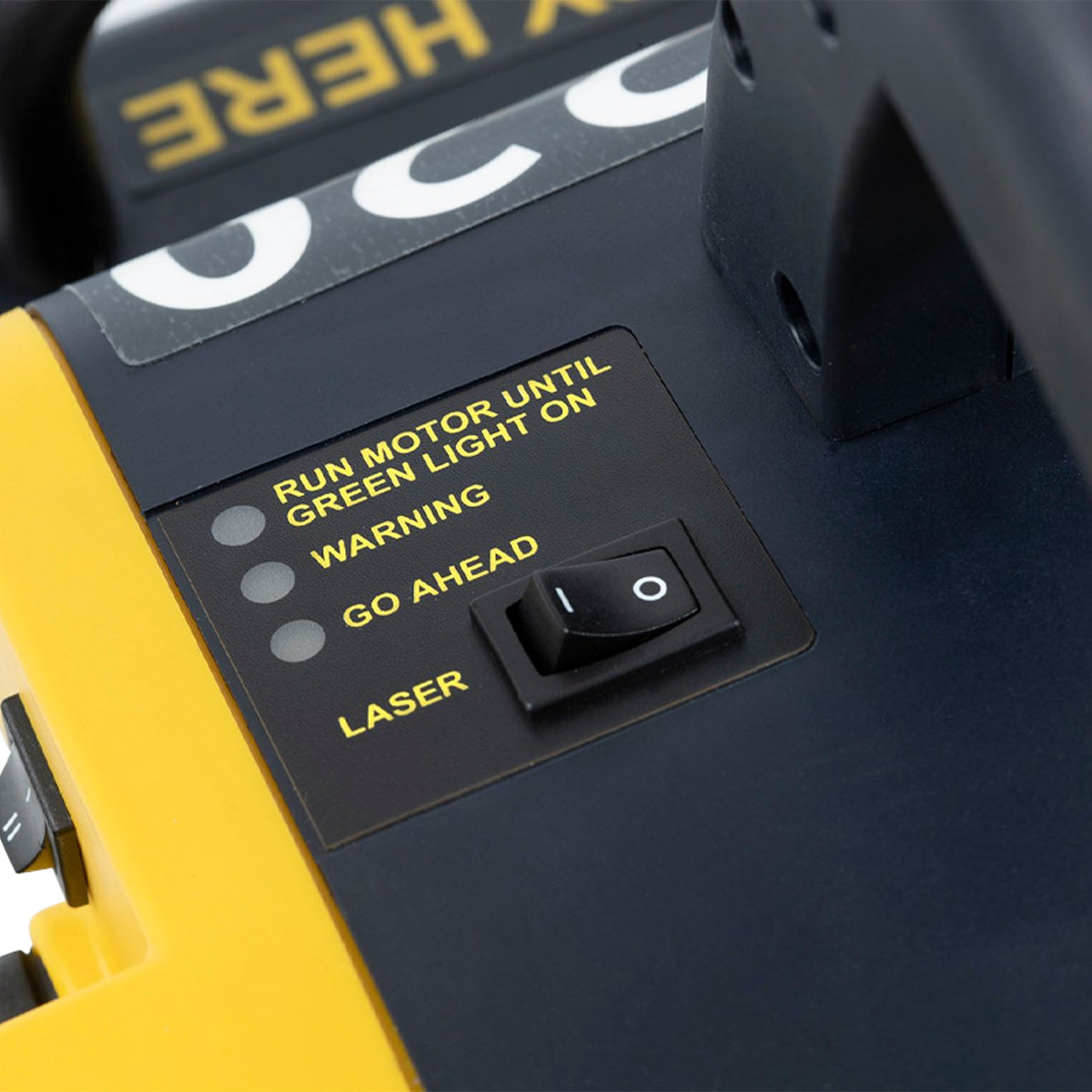

• Improved precision with a traffic light system enabling the user to cut pipes at the correct travel speeds

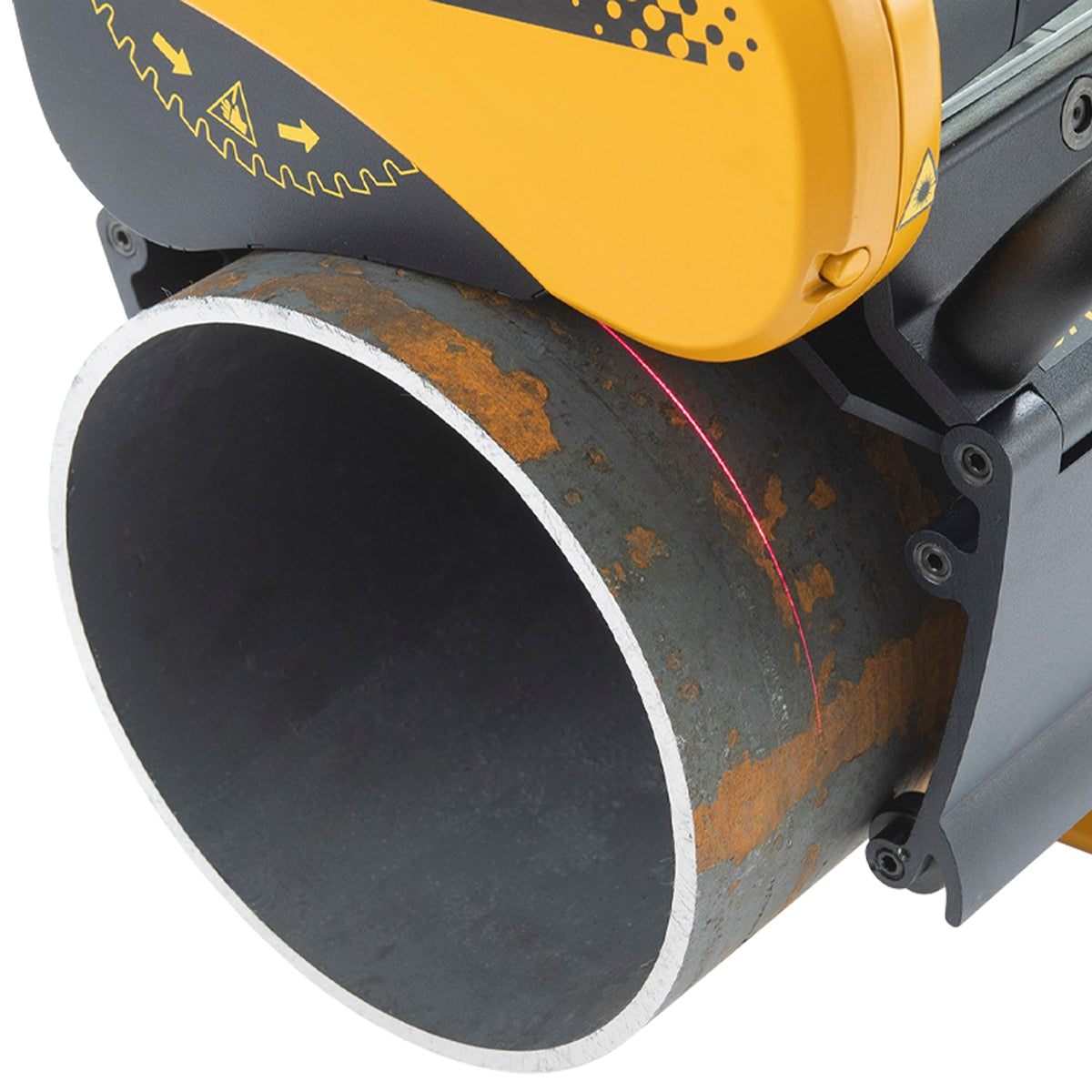

• Laser indicator for cutting point precision

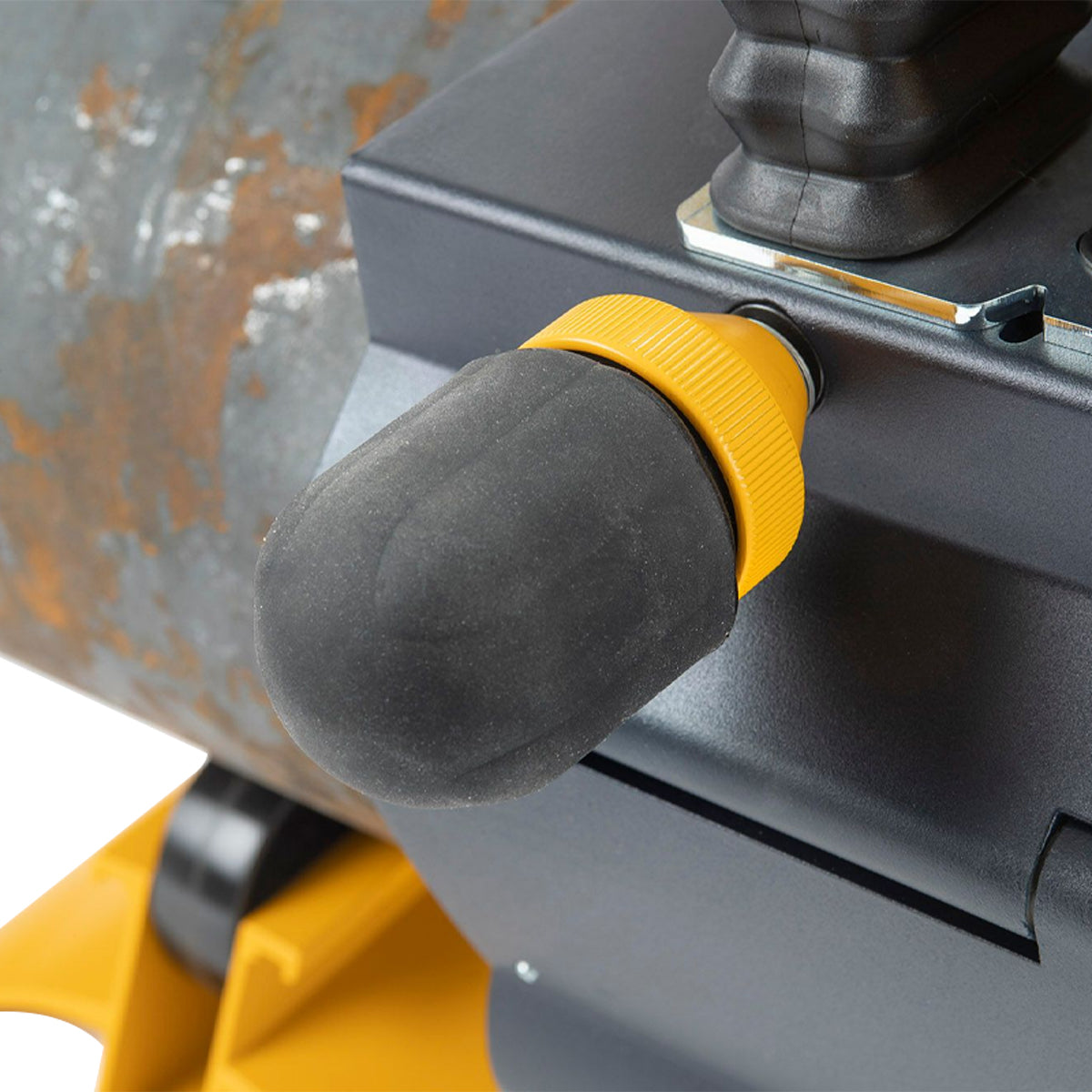

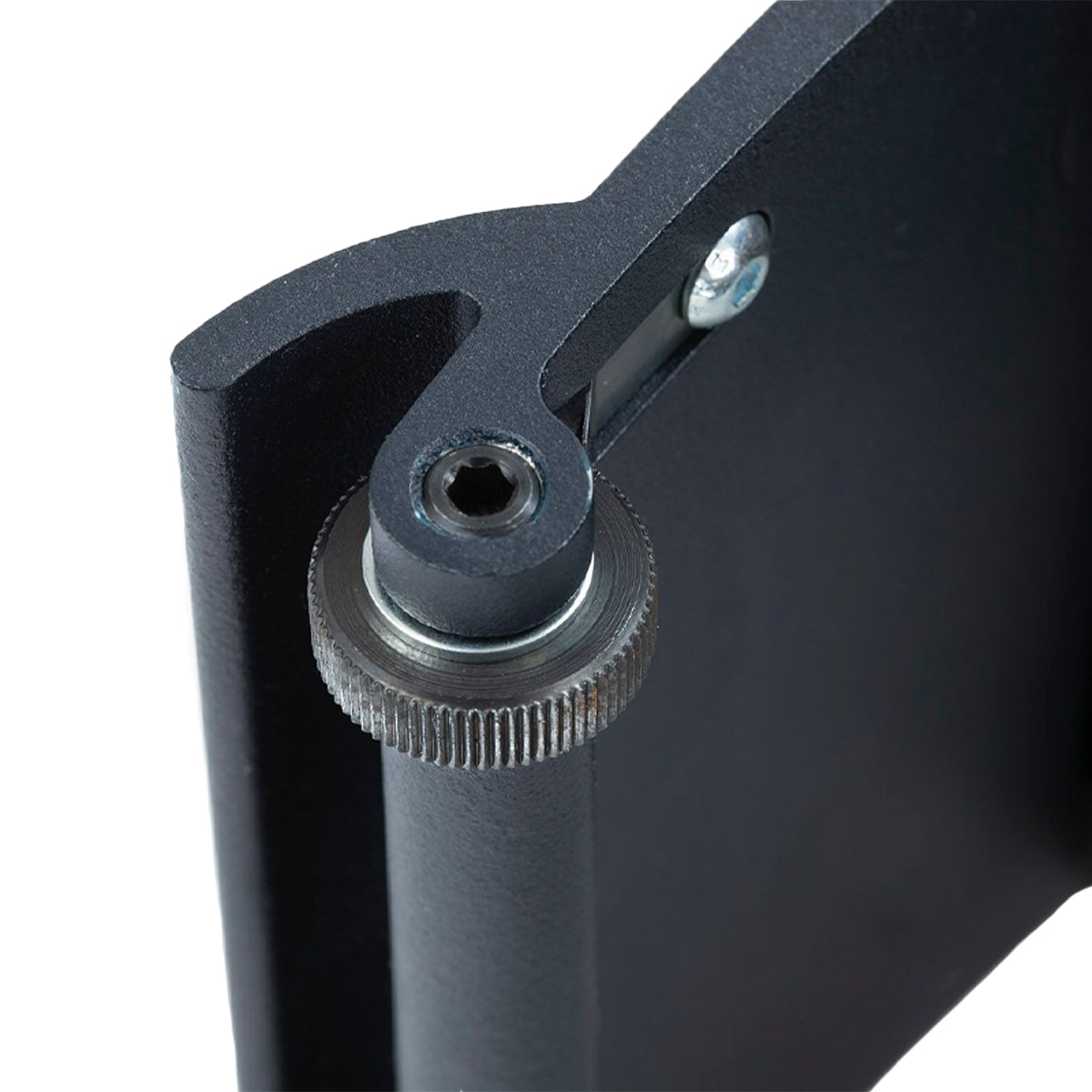

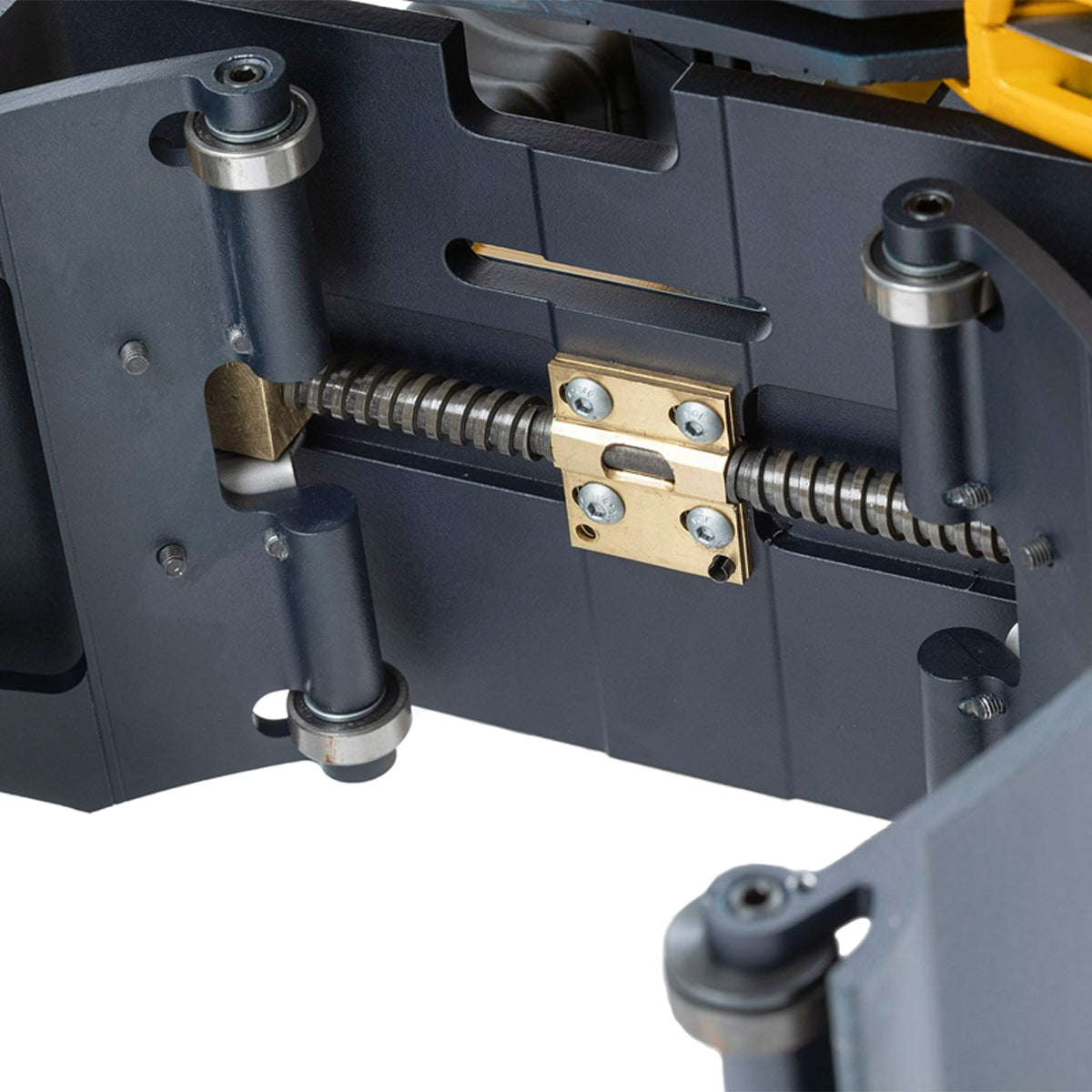

• Updated adjustment mechanism
• Easy to carry, easy to move. The machine weighs only 11.5 kg (25 lbs)

The Pack Includes

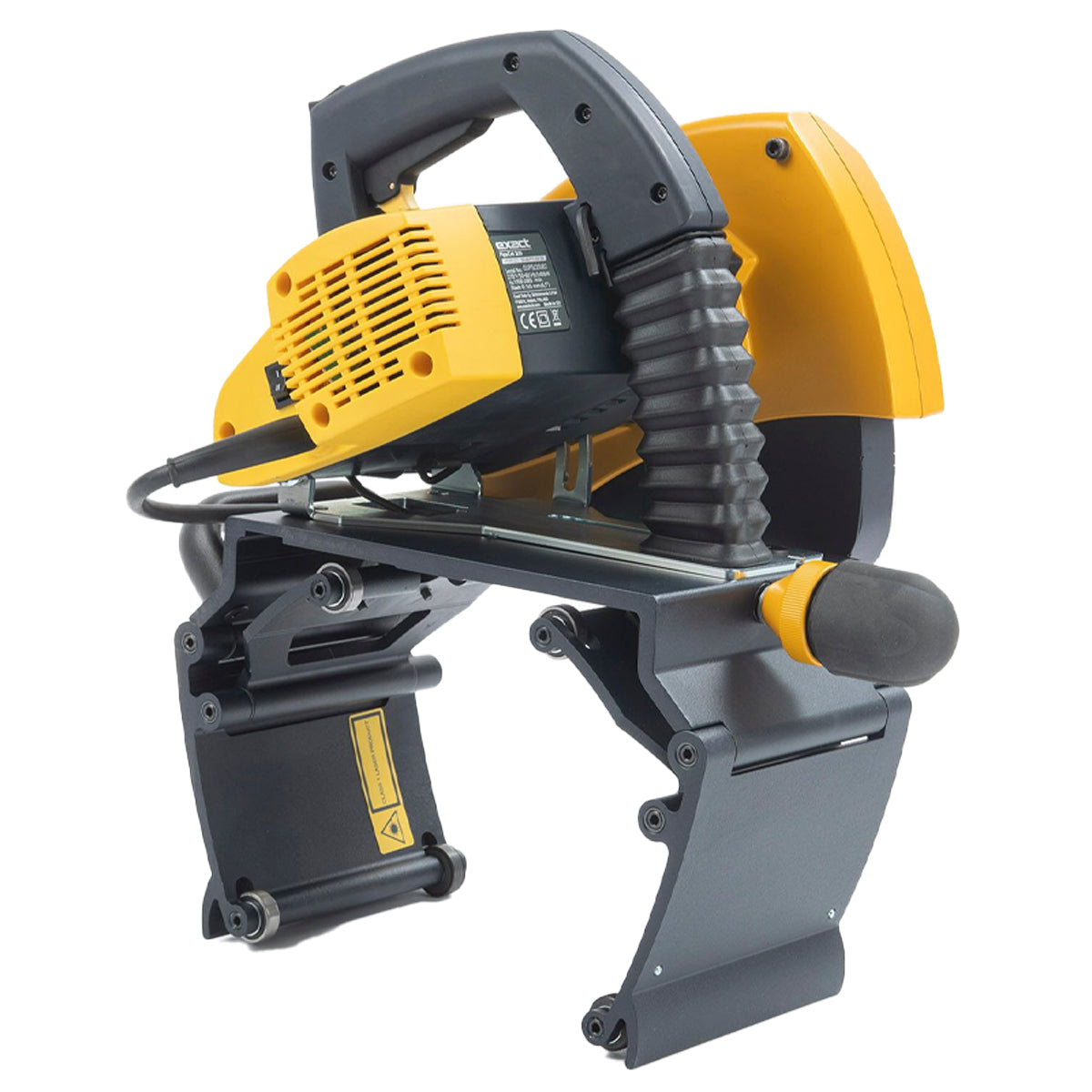

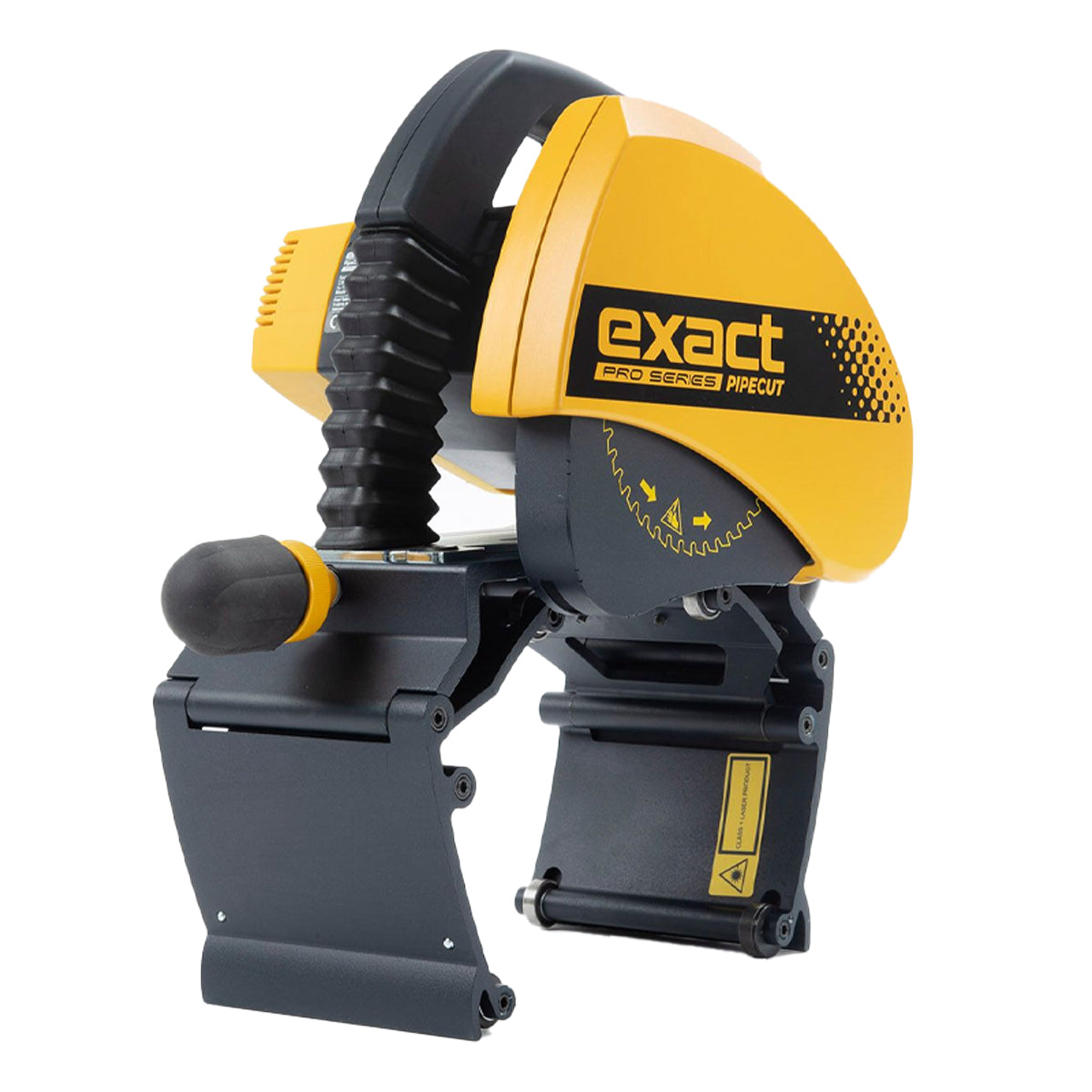

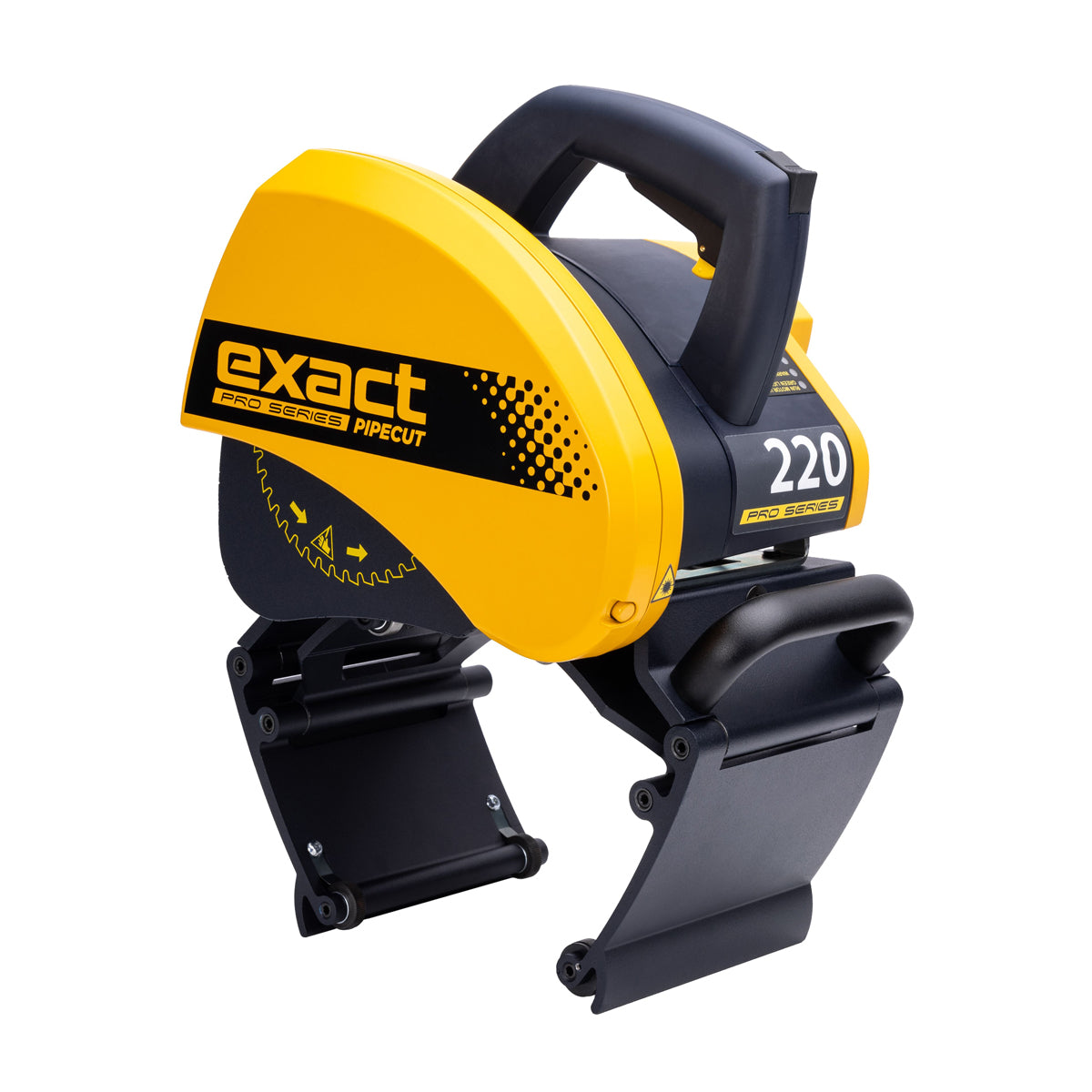

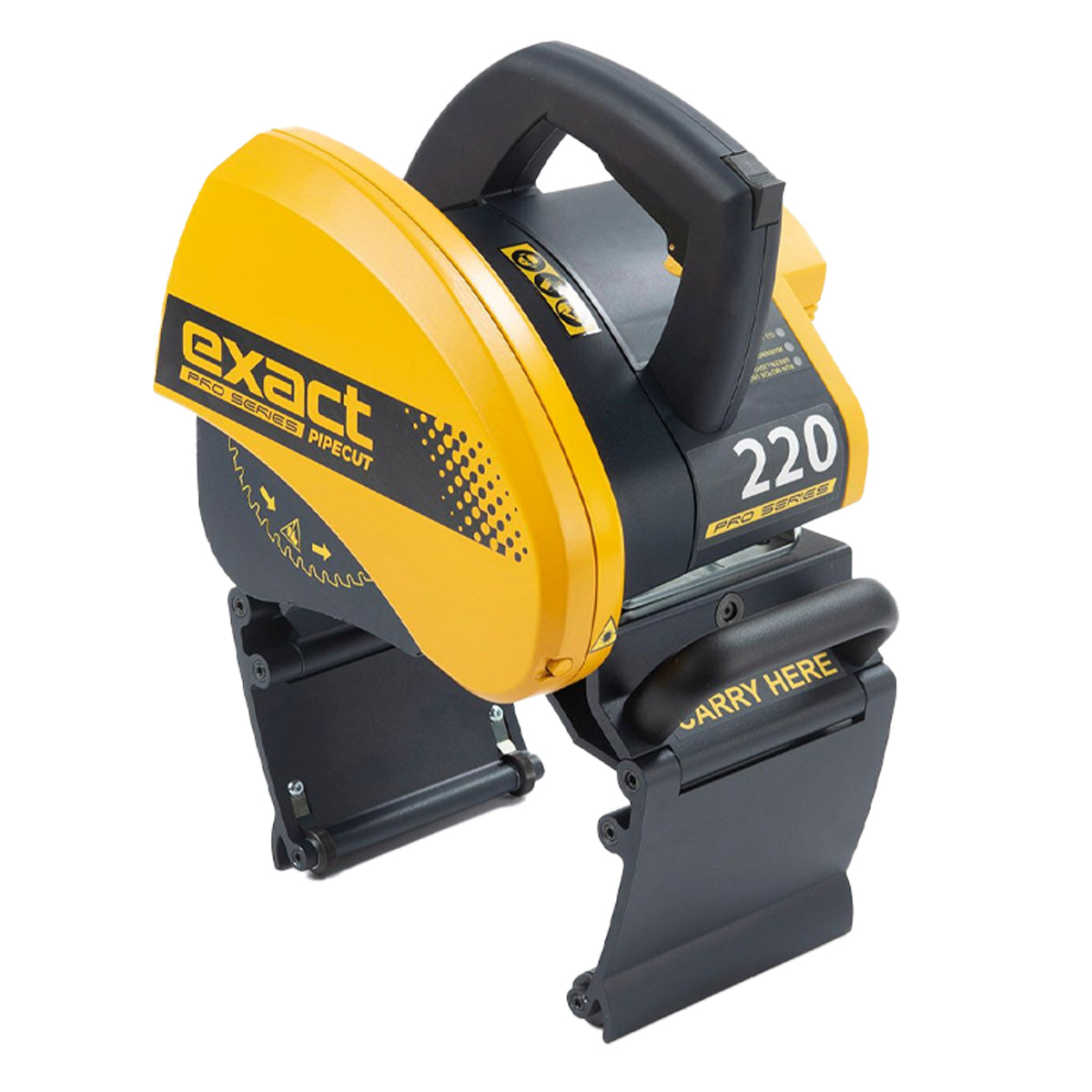

1. PipeCut 220 Pro Series pipe saw
2. TCT 165 blade pre-installed
3. Shoulder bag
4. Pipe support x 4 pcs
5. Hex socket key 5 mm and 2 mm fitted to the machine

Specifications

• Pipe OD: 20mm – 220mm (0.8" – 8.7")
• Max. wall thickness: 16 mm (0.6") steel / 35 mm (1.4”) plastic
• Pipe material: Aluminum / Cast iron / Copper / Glass fiber / Multi-layered materials / Plastic / Stainless/Inox steel / Steel
• Laser for cutting point definition: Yes
• Traffic lights for overheat control: Yes
• Power or Current: 1600 W (220-240 V)
• Electronical unit: Blade speed preselection / automatic fuse / soft start / torque control
• No-Load speed: I=1900 r/min / II=2885 r/min
• Blade diameter: 140mm (5.6”) / 165 mm (6.5") / 180 mm (7.2")
• Mounting bore: 62mm (2.44”)
• Weight: 11.5 kg
• Loading capacity of supports: 314 kg (3 supports)
