Description

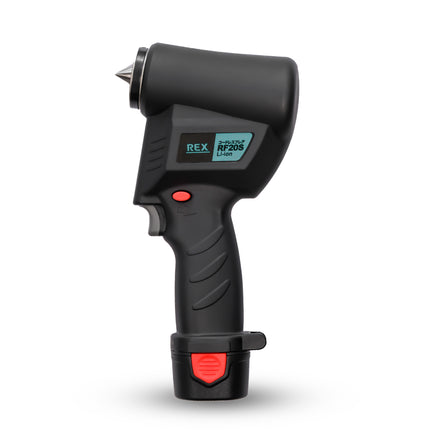

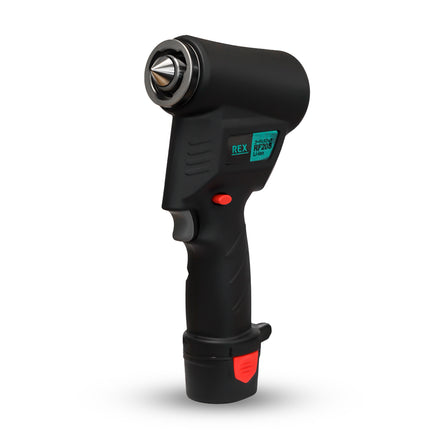

RF20N Cordless Flare
Compact, light weight and powerful!
Eccentric Cone
The eccentric cone moves forward with a rotary motion to gradually push and expand the inner diameter of the copper tube. The forward movement of the cone is then stopped by the clutch, which activates at a predetermined pressure. The flared surface of the copper tube is given a clean finish by the cone's rotary motion.
One-Action Mechanism

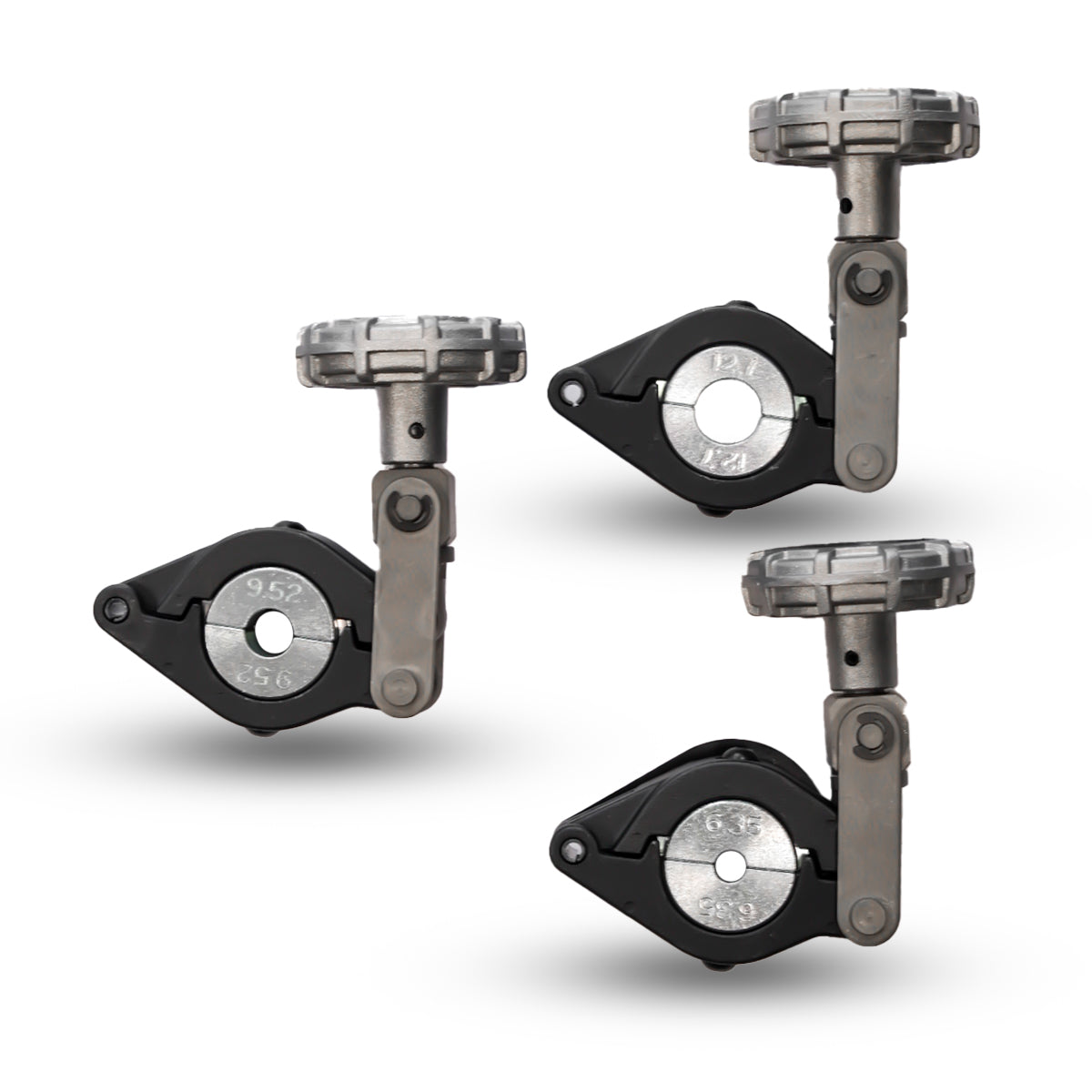

The clamped position of the copper tube is fixed using a stopper, eliminating unevenness in the flaring of the copper tube.
Specifications
| Applicable Tube |
Copper Tubes (O-type, OL-type) JIS H3300 C1220T |
| Applicable Tube Size |
1/4", 3/8", 1/2", 5/8", 3/4" |
| Flare Type |
For refrigerant R-410A |
| Dimensions (LxWxH) mm |
122 x 67.5 x 224 (122 x 67.5 x 274 with battery) |
| Time for flaring |
About 5 seconds |
| Flaring method |
Revolving eccentric cone under stable pressure |
| Revolution speed |
280 rpm |
| Motor |
DC motor |
| Battery |
9.6 V NiCd (424954) |
